Investment Casting

Investment casting, or low wax casting, is a precise metal casting method that uses a ceramic mold to create highly accurate, detailed, and smooth parts. The process involves creating a wax pattern of the desired part, coating it with a ceramic shell, melting out the wax, and then pouring molten metal into the hollow ceramic mold. This technique is used to produce complex and high-strength components for industries like aerospace, automotive, and medical.

The investment casting process

Create a wax pattern: A wax replica of the final part is created, often using an injection die. This pattern is slightly larger than the final part to account for shrinkage when the metal cools.
Build the ceramic shell: The wax pattern is repeatedly coated in a ceramic slurry and dried, creating a hard ceramic shell around it. This is the "investment" part of the process.
Remove the wax: The ceramic shell is heated in a furnace or autoclave, which melts and drains out the wax pattern, leaving a hollow ceramic mold. Any remaining wax is burned away.

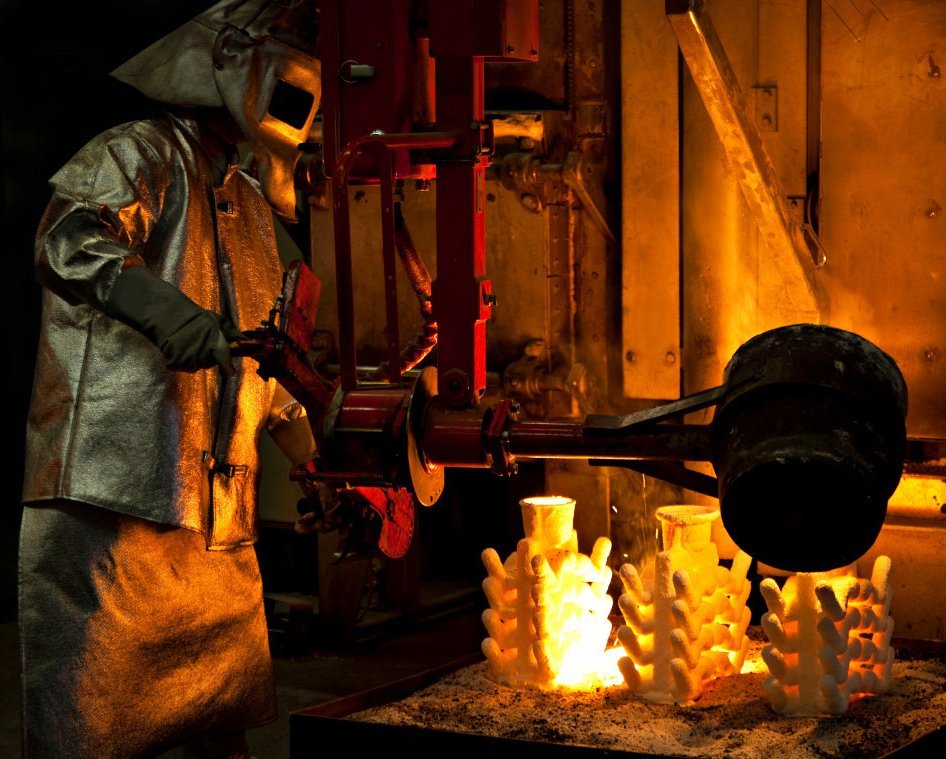

Pour the molten metal: Molten metal is poured into the hot ceramic mold. The liquid metal fills the cavity, taking on the exact shape of the original wax pattern.
Break the mold: After the metal has cooled and solidified, the ceramic shell is broken away to reveal the finished metal casting.
Finish the part: The casting is then cleaned, and any extra material (like the gating system) is removed. It may also undergo further finishing or testing.

Key benefits

High accuracy: Creates parts with excellent dimensional accuracy.
Smooth surface finish: Produces a smoother surface than processes like sand casting.
Complex geometries: Can create highly complex and intricate designs that are difficult or impossible to machine.
Wide material compatibility: Works with a broad range of metals, including stainless steel, carbon steel, aluminum, and copper alloys.
